| Size | 1280x1890mm, 1270x2530mm |
|---|
Specification of diffusion particles :
- Average particle size ≤ 6 μm
- Refractive index ≤ 1.45
- Specific gravity ≤ 0.9 g/cm3
- Weight loss (200°C；1 hr) ≤ 0.5%

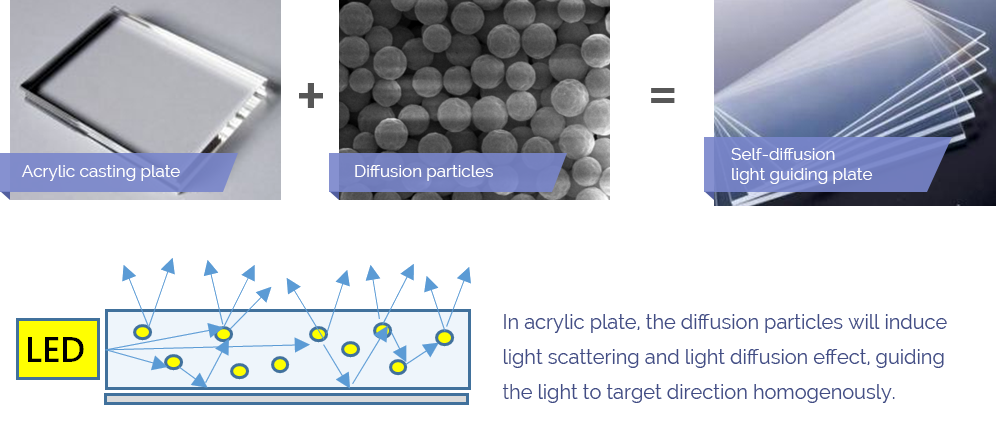

Specification of acrylic self-diffusion light guiding plate：
- Light transmittance ≥ 90%
- Haze ≥ 50%
- Tg ≥ 100℃
- Impact strength ≥ 2 kgf*cm/cm
| Light guiding plate type | Screen Printing | Micro structure | Self-diffusion |
|---|---|---|---|
| Homogeneity | Good | Good | Good |
| Manufacturing Process | Time consuming & complex | Time consuming & complex | One-step forming & simple |
| Durability | Poor | Good | Good |
| Processability | Poor | Poor | Good |
| Shape | Only plane plate | Only plane plate | Plane or bendable plate |
| Percentage | G.P. Sheet (Colorless/Clear) | UV/IR-CUT (Blue) |
|---|---|---|
| UV | 90% | 0% |
| VLT | 93% | 73% |
| IR | 84% | 4% |
| IR-CUT | ~16% | >95% |
Thickness: 5mm
It is compliant with the V-0 requirement of UL 94 Vertical Buring Test
